AT89LP Family Parallel Port SPI Programmer V1
Programming the AT89 Family: Flash Memory, Lock
Bits and User Fuses
The AT89LP2052 and AT89LP4052 microcontroller provide two
interfaces with same command format for device programming. The serial ISP
Programming interface of the new LP2052/4052 microcontroller needs one
additional SS Signal for device programming. This 2052 / 4052
programmer design uses the serial programming mode via Parallel Port
and supports the SS Signal.
This final design also supports the AT89ISP Programmer cable / Atmel ISP
header and Atmel ISP Software!! If your design does not have an ISP Header
or if you are looking for a low cost programmer for this Atmel
device, then you just can put the device into the socket on the small pcb
and programm the device without any external power supply(The
parallel port must support at least more then 3 Volt).
Read of Lock bits and User fuses and Verify after Flash Write are
supported by the software.
To minimize the influence of
undefined states it is necessary to start the host software (to disable
Vcc and Vpp !) before a 2052 / 4052 LP device is put into the socket.
Programmer Software (Ver 1.0)
The programmer is controlled by GMS software running on the host.
The software supports writing the flash memory (hex files), Lock bits and
user fuses in SPI programming mode. The GMS software can handle the Vcc
and Vpp signals of the microcontroller. The status of the signals are
displayed by LED 1 and LED 2 on the board. The 10 pin ISP Pinhead
is compatible with Atmel ISP software.
PPS V1
Complete PCB (with 20 pin socket to program the LPx052
microcontroller device direct on the PPS Board (easy to disable / enable the
internal LP fuses, the parallel port must support at least more then
3 Volt) or just use the 10 PIN ISP connector and original Atmel ISP
Software. No crystal is needed to flash the device.
Atmel
Documentation: AT89 ISP programmer cable
Atmel ISP Software
PPS V1 ISP
Just use the 10 PIN ISP connector and original Atmel ISP Software.
Atmel
Documentation: AT89 ISP programmer cable
Atmel ISP Software

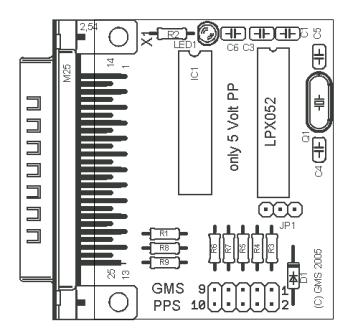

PPS V1 PCB
Its easy to solder the parts.
The PCB is shipped with part list.
Interested in more than 50 PCB's ?
mail to j.hulzebosch@gms2000.de
